Six areas. Connected expertise.
01 Liquid cooling plates
Liquid cooling. From process to part. An automated continuous brazing line, machining centers and automated coating equipment support liquid cooling plate manufacturing. Processing and inspection requirements are defined for each part.

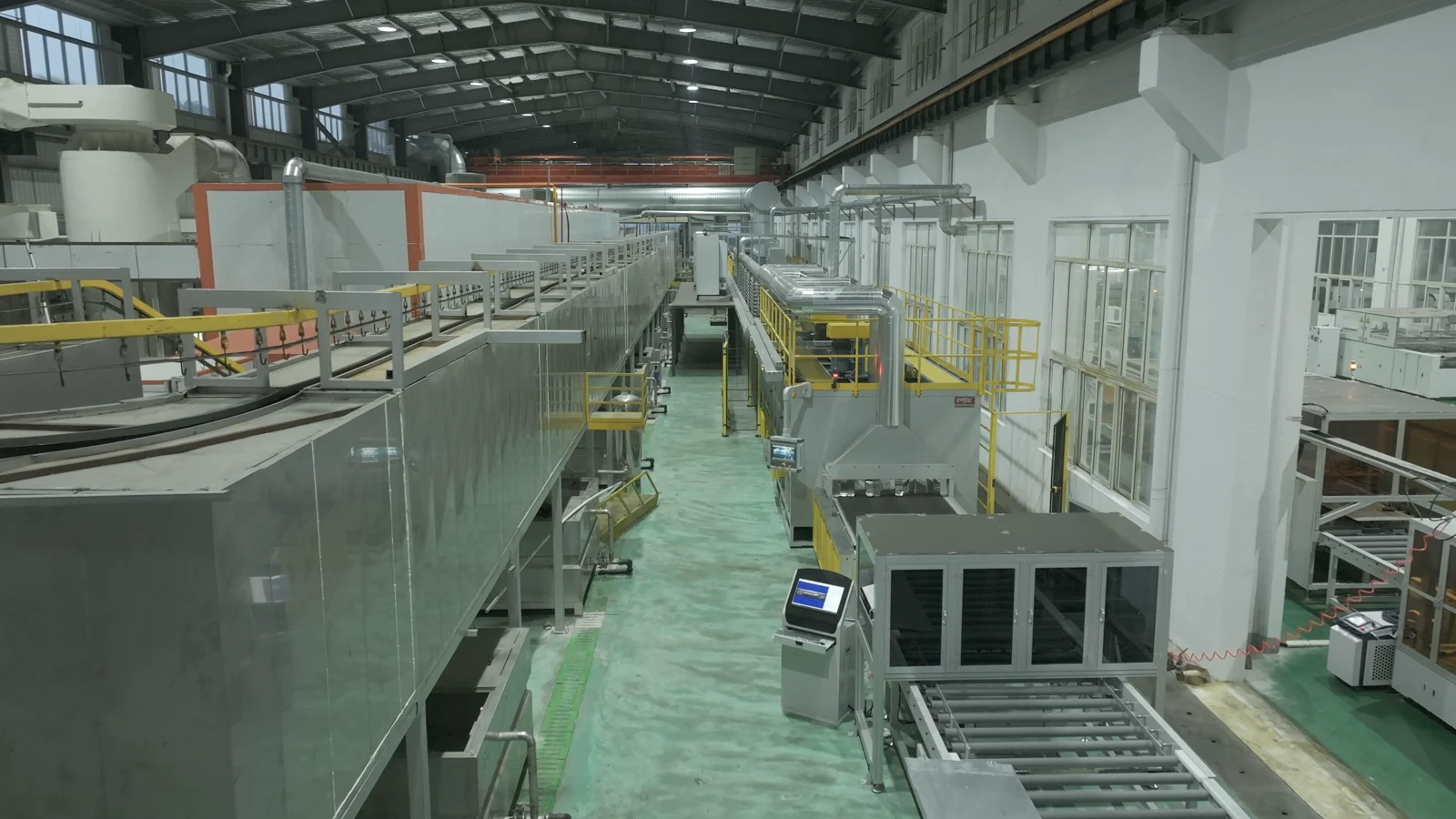

Automated continuous brazing line 01 / 03 01 Automated continuous brazing line The integrated line brazes liquid cooling plates, aluminum assemblies and heat exchangers. 02 Machining center equipment cluster Machining centers provide part machining within the liquid cooling plate manufacturing equipment cluster. 03 Automated coating line A finishing capability within the liquid cooling plate equipment cluster, used where the product specification calls for a coating.
02 Aluminum fabrication
Prepared. Joined. Fabricated. Dedicated profile cutting and two friction stir welding systems support aluminum panel and assembly production. The product range includes liquid cooling plates and liquid-cooled enclosures.

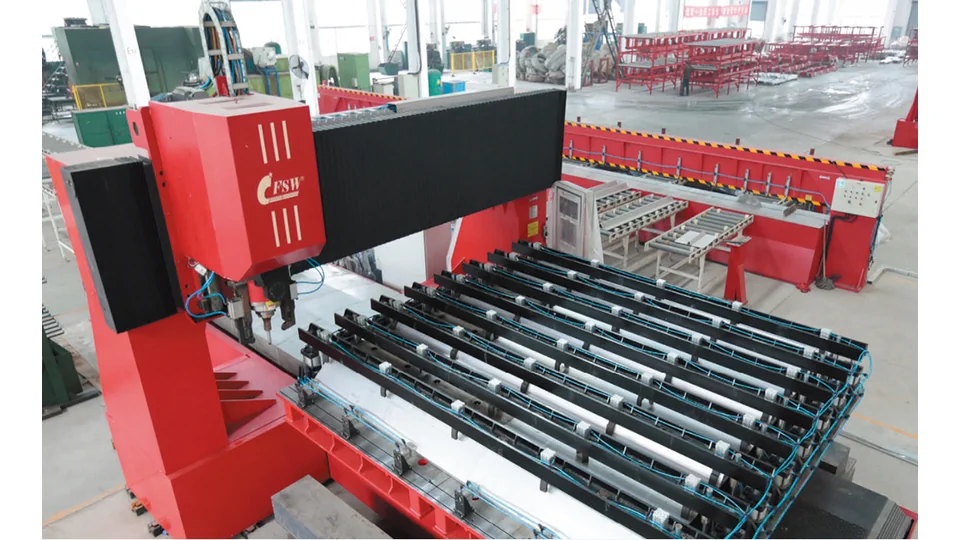

FSW-LM-25 fixed-beam gantry system 01 / 03 01 FSW-LM-25 fixed-beam gantry system Joins aluminum components along straight or planar curved seams. Welding thickness: 2–25 mm · Maximum travel: 4,000 × 4,000 mm 02 FSW-4LH-4012 welding system A long-bed system for joining aluminum profiles, supporting large panel fabrication. Double-sided welding thickness: 2–12 mm · Travel: 21,000 mm 03 Dedicated aluminum profile cutting equipment Cuts aluminum profiles as part of the preparation for fabricated and welded assemblies. Maximum single-sided cutting thickness: 200 mm · Length: 15,000 mm
03 Structural components
From cut parts to assemblies. Tube and sheet laser cutting work alongside automated laser and CMT robotic welding for structural component manufacture.

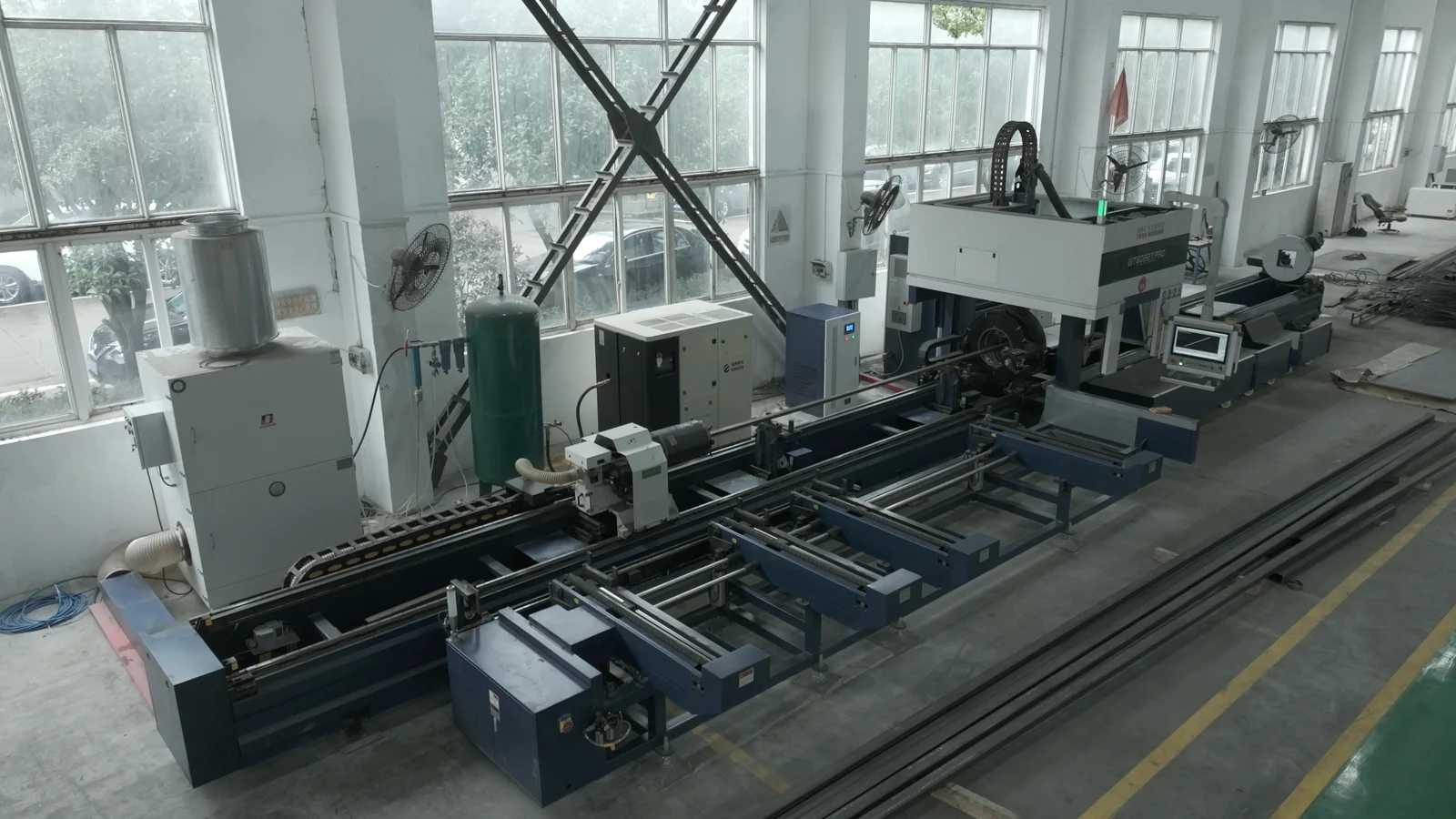

Laser tube cutting machine 01 / 04 01 Laser tube cutting machine Prepares tube components for fabricated structural assemblies. 02 Laser sheet cutting machine Cuts sheet components before subsequent fabrication and joining operations. 03 Automated laser welding workstation An automated workstation for joining structural components by laser welding. 04 CMT robotic welding workstation Robotic welding integrates welding equipment with part fixtures for structural assemblies.
04 Forging & pressing
Force, put to work. Pressing and forging equipment for metal forming, from large shaped components to die forgings.

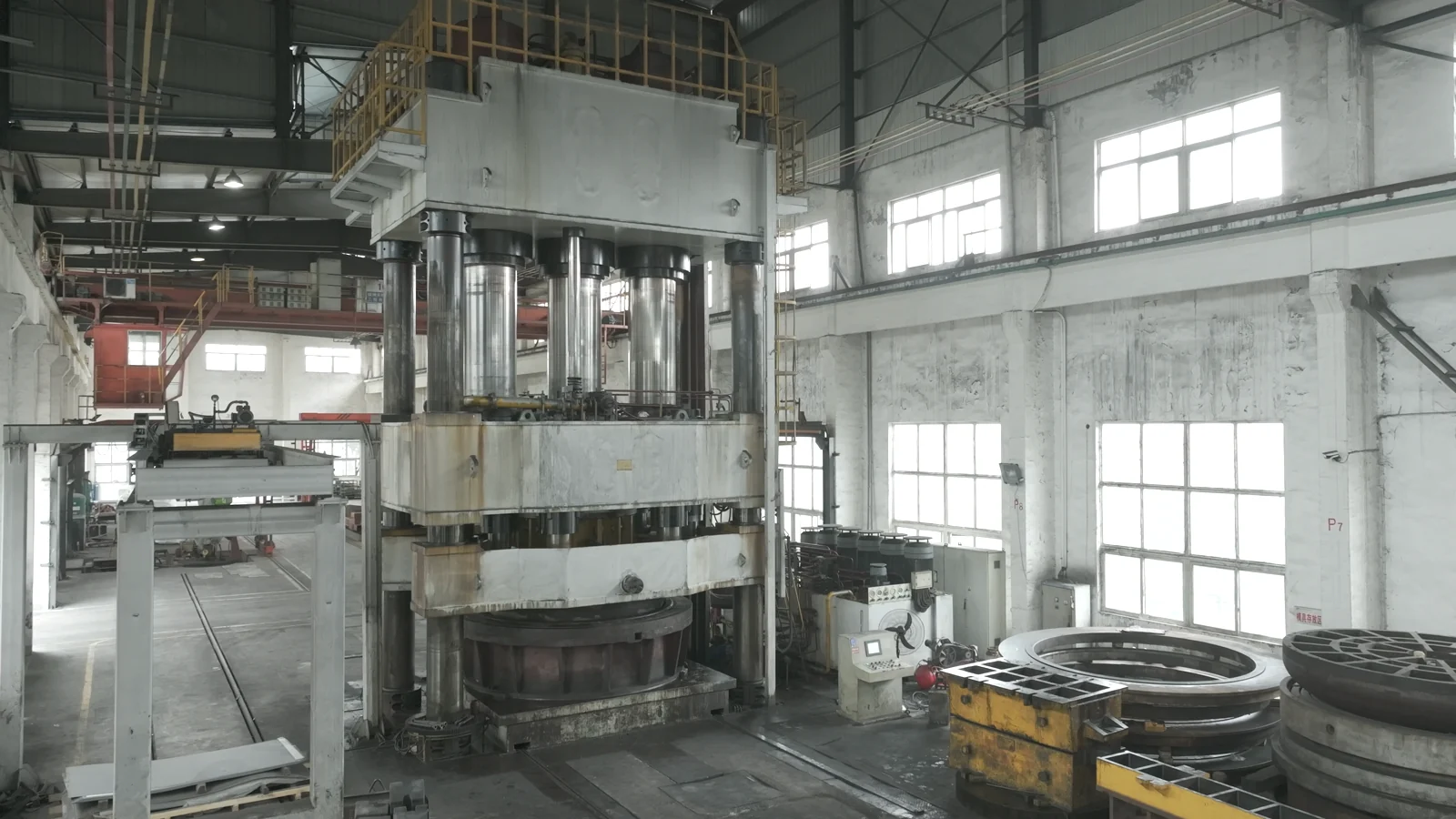

5,000 / 2,500 t double-action press line 01 / 03 01 5,000 / 2,500 t double-action press line Cold and hot forming of large heads and shaped components. The main ram and blank holder perform distinct forming roles. Maximum die installation size: 4,000 × 4,700 mm 02 80,000 kN friction press Forging equipment for metal forming, with a specified forging weight range of 30–300 kg. Table: 1,300 × 2,136 mm · Slide stroke: 800 mm 03 1,600 t electric screw press line An electric screw press provides the forming force for die-forged components. Nominal force: 16,000 kN · Ram stroke: 650 mm
05 Rivet production
Forming the connection. Cold heading, thread rolling and heat treatment support the production of rivets and matching collars. The product series spans diameters of Ø5–45 mm.

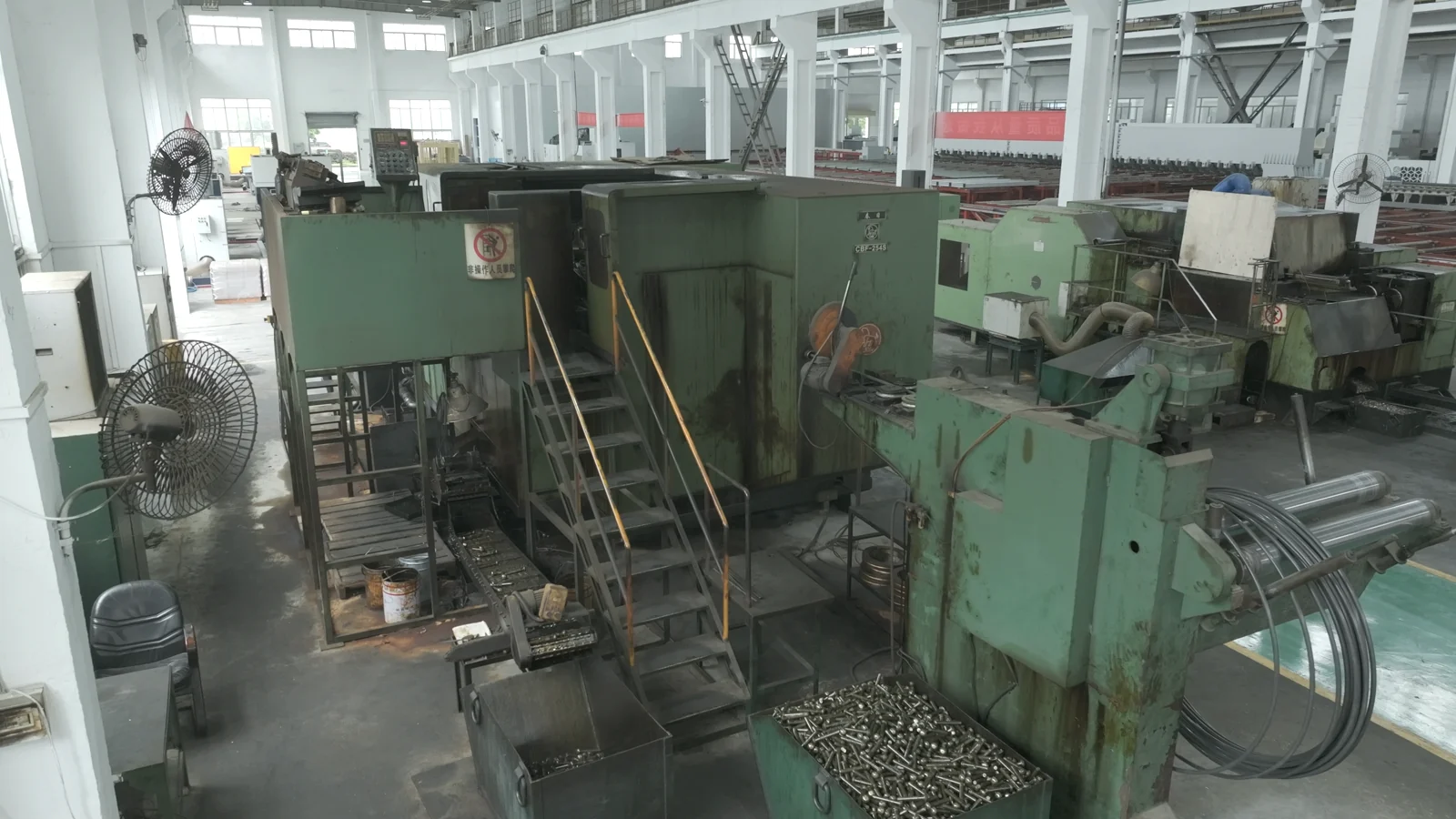

CBF-254S multi-station cold header 01 / 04 01 CBF-254S multi-station cold header Multi-station cold forming shapes fastener blanks for the rivet series. Maximum blank: Ø26 × 175 mm · Heading rate: 40–60 pieces/min 02 YW-C-NF41B6S cold-forming machine Cold forming equipment supporting the matching collar and nut components of the fastening series. Maximum blank: Ø45 × 75 mm · Heading rate: 60–90 pieces/min 03 CPR-25LL thread rolling machine Forms the required rolled thread features on suitable fastener blanks. 04 GST-680 roller-belt quenching furnace Heat-treatment equipment complements forming and thread rolling within fastener production.
06 Test & inspection
Checked against requirements. For liquid cooling projects, sealing integrity, geometry and joint condition are key engineering discussions. Our equipment provides several ways to investigate them, with the test plan agreed for each part.
Vacuum-chamber helium leak testing 01 / 07 01 Vacuum-chamber helium leak testing Uses helium as a tracer gas to check sealing integrity in a vacuum-chamber test system. 02 Airtightness testing Checks for gas leakage from the workpiece. Test conditions and acceptance criteria are defined for the project. 03 Watertightness testing Checks the watertightness of the workpiece under the agreed test conditions. 04 X-ray digital radiography Examines internal features and discontinuities in suitable components and joints without sectioning the part. 05 Coordinate measurement Checks component geometry and dimensions against the specified drawing requirements. 06 Electrical insulation testing Evaluates electrical insulation where the product design includes an insulation requirement. 07 Spectrometry Supports material composition analysis as part of the wider inspection capability.
